plastic HDPE roll irrigation pipe

FOB Reference Price:Get Latest Price
$0.31 - $2.43 / Meters | 100 Meter/Meters one container(20' or 40') (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
Er Lang Shen
Model Number:
PE100
Material:
PE
Specification:
dn20mm-dn63mm
Length:
50m,100m,200m,300m coil length
Thickness:
en2.0mm-en5.8mm
Standard:
ISO4427/BS EN12201/GB13663
color:
black with blue stripes or other available colors on request
pressure rating:
1.25Mpa,1.6Mpa
standard dimention ratio:
SDR13.6,SDR11
certificates:
ISO9001,ISO14001,OHSAS18001
Supply Ability
Supply Ability:
2000 Ton/Tons per Month
Packaging & Delivery
Packaging Details
plastic white woven bags package or customized
Port
Qingdao Port or other agreed ports
Lead Time :
within 20 days after order confirmed

Specifications

1.HDPE100 in Coil
2.DN:20mm-63mm
3.EN:2.0mm-5.8mm
4.Standard:ISO4427/GB13663
5.Excellent Flexibility,Non-toxic,Longevity etc

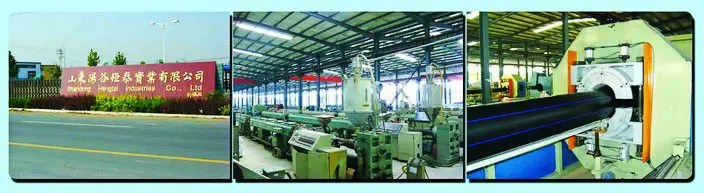

Manufactuer Of HDPE Pipe With Actual Factory In Shandong Prov.

Professional Supplier Of HDPE Pipe With Large Diameter upto dn1200mm

Sevice since 1998

Annual Production Capacity Upto 80,000Tons

Advantages

1.Non-toxic: no heavy metal additives ,would not be covered with dirt or contaminated by bacterium

2.Corrosion Resistant: resist chemical matters and electron chemical corrosion

3.Low Flow Resistance: smooth interior walls and low friction

4.Excellent Flexibility: can be supplied in coil

5.Easy installation: light weight and handed friendly

6.Longevity: more than 50 years under proper use

7.Various Joint Availability: socket fusion joint, butt fusion joint, electro fusion joint and transition joint

8.Recycled and Environment-friendly



Applications

1.Municipal water supply

2.Commercial & Residential water supply

3.Industrial liquids transportation

4.Sewage treatment



Physical Properties

Properties

Typical Value

Specific Gravity, g/cm3(20°C)

0.941~0.965

Longitudinal Reversion, %(110°C)

≤3

Oxidation Induction Time, min(200°C)

≥20

Extension Rate at Break,%

≥350

Hydraulic Pressure Test

20°C,100h, Hoop Stress is 12.4MPa

No Failure

80°C,165h, Hoop Stress is 5.5MPa

No Failure

80°C,1000h,Hoop Stress is 5.0MPa

No Failure

                                                       HDPE100 Water Pipe Catalogue

Note: 25mm & 20mm is available for us.



                                                        Certificates

                                      ISO 14001-2004                                                                   ISO 9001-2008

                         OHSAS18001-2007                                                   XHJS Water Saving System Certificate

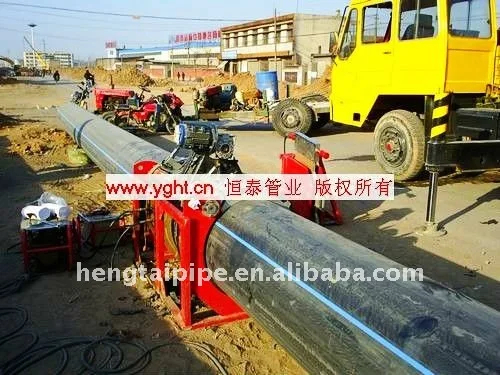

"Every Village" Public Water Works System in Pingyin County ,Shandong Prov.Construction Site



Thanks for your kind focus on our products,



we will try our best to satisfy you with our good price and service.



Pls don't hesitate to contact with us,just try it~
