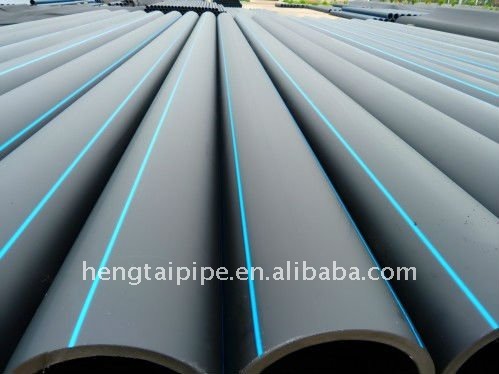

10 inch 280mm OD hdpe drain pipe

FOB Reference Price:Get Latest Price
1000 Meter/Meters OR one container(20'or40');Sample order will also be accepted. (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
Erlang Shen
Model Number:
PE
Material:
PE
Specification:
dn25mm-dn1200mm
Length:
5.5 meters and 11.6 meters straight length (all size)
Thickness:
en2.3mm-en70.6mm
Standard:
ISO4427:2007 and GB13663-2000
color:
black with blue stripes or other available color on request
pressure rating:
0.4 MPa, 0.8 MPa,1.0MPa,1.6 MPa
standard dimention ratio:
SDR33,SDR26,SDR21,SDR17,SDR13.6,SDR11
form supplied:
straight form(all size) and coiled form(dn20mm-dn63mm)
Supply Ability
Supply Ability:
200,0000 Meter/Meters per Month
Packaging & Delivery
Packaging Details
bulk or customized
Port
Qingdao Port or other available ports
Lead Time :
within 20 days after order confirmed

Specifications

1.Material:HDPE80/100
2.DN:25mm-1200mm
3.Pressure:0.4MPa-1.6MPa
4.Standd:ISO4427/GB13663
5.Non toxic,corrosion resistant.etc

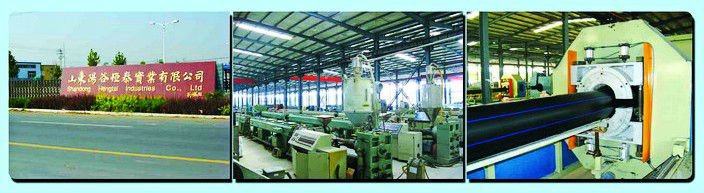

Large Manufactuer Of HDPE Pipe With Actual Factory In Shandong Prov.



Professional Supplier Of HDPE Pipe With Large Diameter upto dn1200mm



Sevice from 1998



Annual Production Capacity Upto 80,000Tons





Advantages

1.Non-toxic: no heavy metal additives ,would not be covered with dirt or contaminated by bacterium

2.Corrosion Resistant: resist chemical matters and electron chemical corrosion

3.Low Flow Resistance: smooth interior walls and low friction

4.Excellent Flexibility: can be supplied in coil

5.Easy installation: light weight and handed friendly

6.Longevity: more than 50 years under proper use

7.Various Joint Availability: socket fusion joint, butt fusion joint, electro fusion joint and transition joint

8.Recycled and Environment-friendly

Applications

1.Municipal water supply

2.Commercial & Residential water supply

3.Industrial liquids transportation

4.Sewage treatment

Physical Properties

Properties

Typical Value

Specific Gravity, g/cm3(20°C)

0.941~0.965

Longitudinal Reversion, %(110°C)

≤3

Oxidation Induction Time, min(200°C)

≥20

Extension Rate at Break,%

≥350

Hydraulic Pressure Test

20°C,100h, Hoop Stress is 12.4MPa

No Failure

80°C,165h, Hoop Stress is 5.5MPa

No Failure

80°C,1000h,Hoop Stress is 5.0MPa

No Failure



                                     HDPE100 Water Pipe Catalogue













                                             Quality Certificates



                                             (1) ISO9001:2008







                                                             (2) XHJS Water Saving Certification





"Every Village" Public Water Works System in Pingyin County ,Shandong Prov.

                                                       Construction Site





                                                                       (1)



                                                                       (2)
